Please provide a detailed introduction to the impedance matching principle of FAKRA cables

Please provide a detailed introduction to the impedance matching principle of FAKRA cables

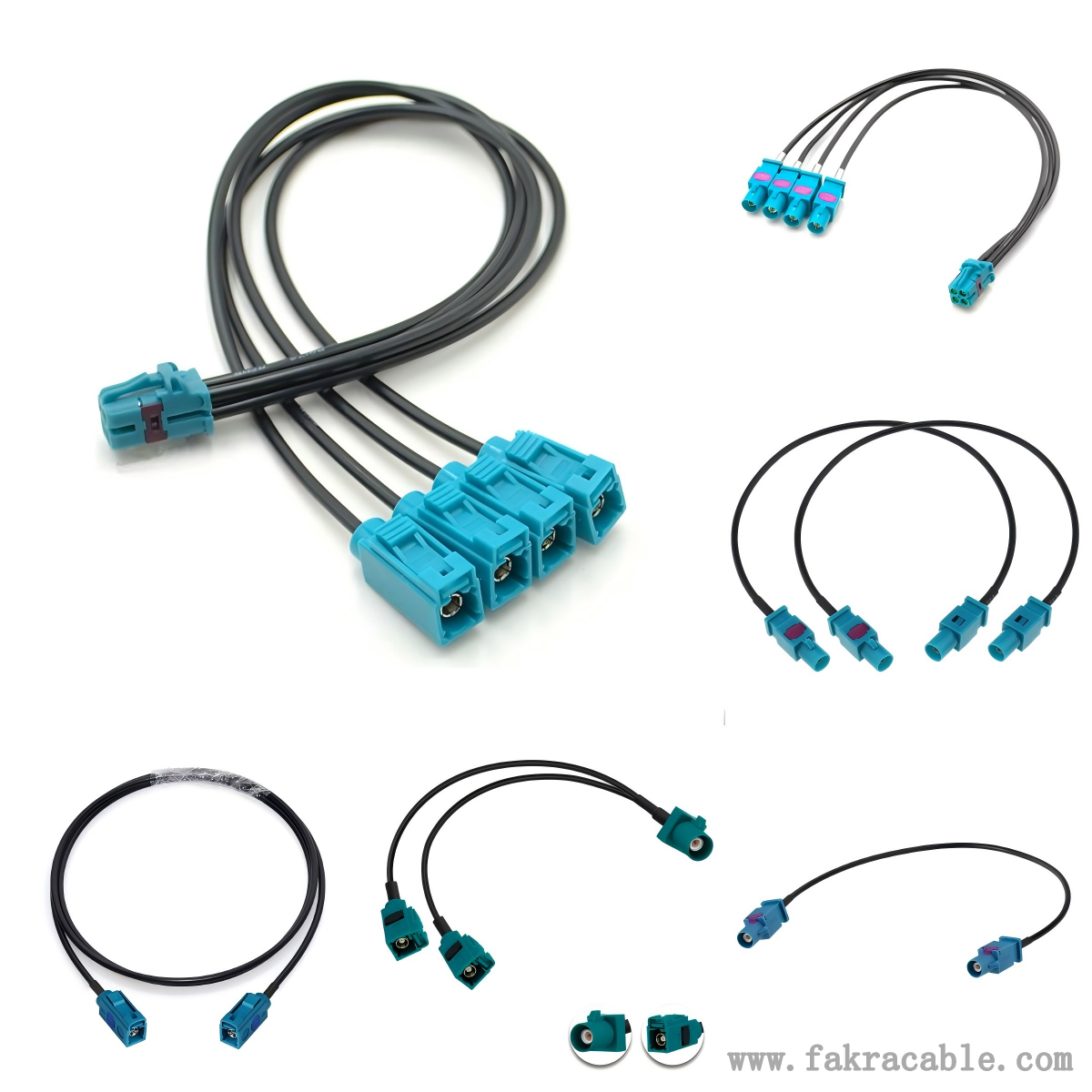

Structure and materials of FAKRA cables:

Coaxial cable structure: FAKRA cables typically adopt a coaxial cable structure, consisting of an inner conductor, insulating medium, outer conductor (shielding layer), and sheath. This structure has good electromagnetic shielding performance and stable characteristic impedance.

Material selection: In terms of materials, high conductivity metals such as copper or copper alloys are generally used as inner conductors to reduce resistance and minimize attenuation during signal transmission. Insulating media typically use materials such as polyethylene with low dielectric constant and low loss characteristics, which can reduce signal transmission delay and loss, while also helping to stabilize characteristic impedance. The outer conductor serves as a shielding layer, which can prevent external electromagnetic interference from entering the interior of the cable and limit the leakage of electromagnetic energy from the signal inside the cable, ensuring the stability and integrity of signal transmission.

Design and fitting of connectors:

Standard impedance design: The standard characteristic impedance of FAKRA connectors matches the characteristic impedance of cables. In this way, when the cable is connected to the connector, it can ensure that the signal maintains good impedance continuity during transmission from the cable to the connector, and then to other devices or lines connected to it, reducing signal reflection.

Accurate mechanical structure: The mechanical structure design of the connector is precise, ensuring good electrical contact and physical fixation during connection. For example, the mating accuracy between the plug and socket of the connector is high, which can ensure the concentricity of the inner and outer conductors, avoid impedance changes caused by poor contact or structural deviations, and thus affect the quality of signal transmission. At the same time, the connector also has an anti misconnection design, which ensures that only the correct connectors can be connected to each other through unique key positions or shapes, avoiding impedance mismatch problems caused by incorrect connections.

In practical applications, strict control is required at various stages such as design, manufacturing, installation, and testing to ensure impedance matching of FAKRA cable systems. During the design phase, accurately calculate and design the parameters of cables and connectors based on specific application and signal transmission requirements; During the manufacturing process, high-precision production techniques and quality control measures are adopted to ensure that the dimensional accuracy and material properties of cables and connectors meet the requirements; During installation, follow the specifications to ensure that the connector is securely connected and in good contact; Finally, using professional testing equipment such as a characteristic impedance analyzer, the cable components are tested to verify whether their characteristic impedance is within the specified range, in order to ensure the signal transmission performance of the entire system.
